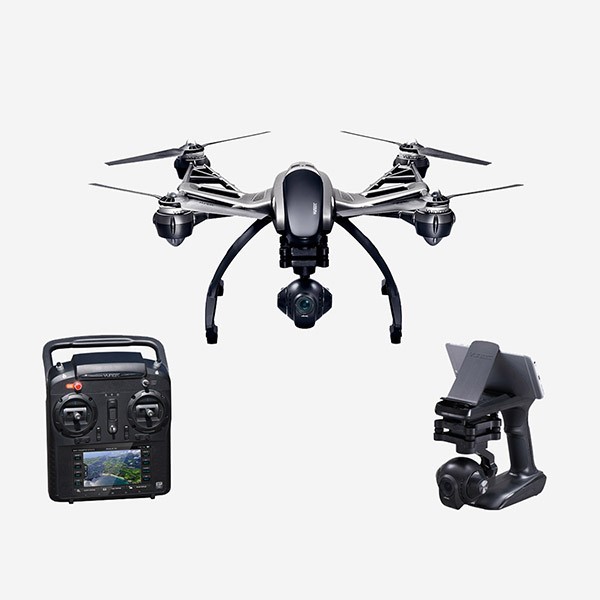

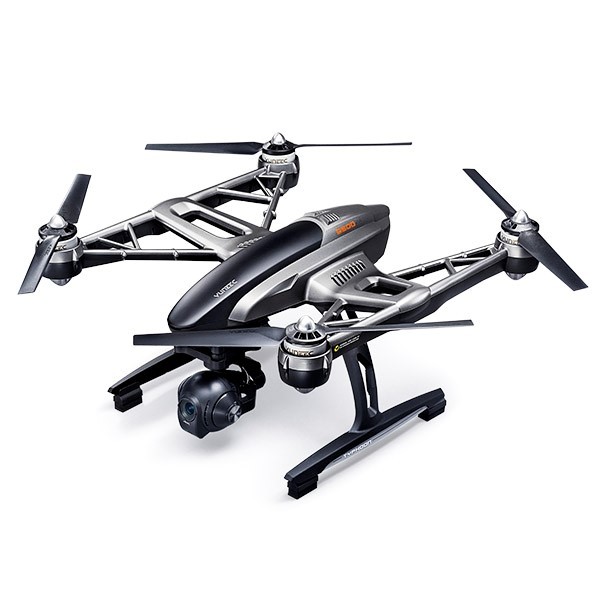

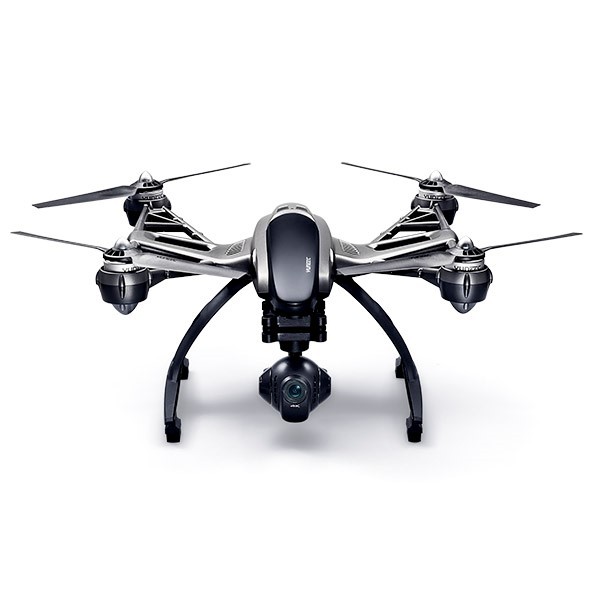

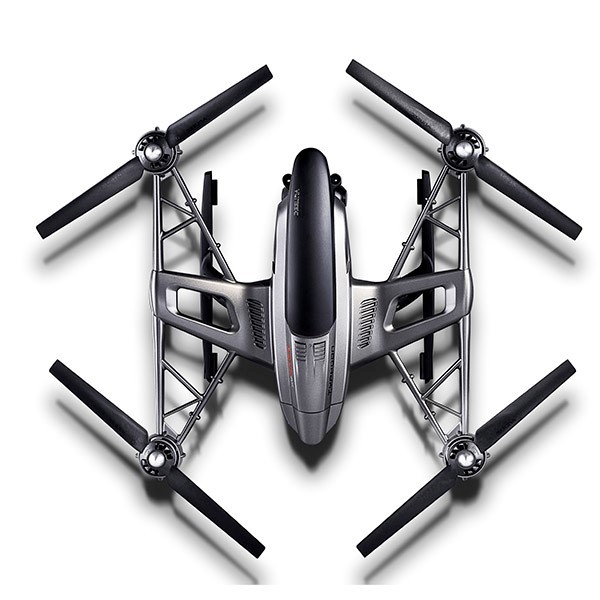

TYPHOON Q500 Multicopter Specs
FLIGHT TIME:
Up to 25 Minutes
DIMENSIONS:
9.45 in (21 Omm) x 16.54 in (420mm)
DIAGONAL MOTOR TO MOTOR DISTANCE:
20 in (510mm)
PROPELLER/MAIN ROTOR DIAMETER:
13.0 in (330mm)
WEIGHT WITHOUT BATTERY AND PAYLOAD:
40.0 oz (11 30g)
MAXIMUM TAKEOFF WEIGHT WITH CG03:
60.0 oz (1700g)
BATTERY:
5400mAh 3S 11 .1V LiPo (included)
CHARGER:
3S 11.1V LiPo DC Balancing Smart Charger with AC Adapter
(included)
(included)
TRANSMITTER:
1 0-channel 2.4GHz with 5.8GHz video downlink (included)
MAXIMUM FLYING ALTITUDE:
Default 400 Feet Above Ground Level (Adjustable via the Q500 GUI)
RADIO CONTROL FREQUENCY BAND:
2.4GHz

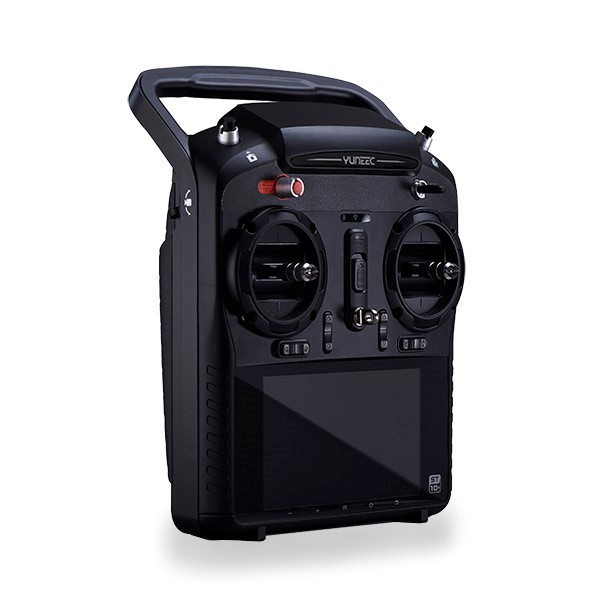

ST10+ Personal Ground Station
NUMBER OF CHANNELS:
10
OPERATING SYSTEM:
AndroidTM
SCREEN SIZE:
5.5″
SCREEN RESOLUTION:
854 x 480
RADIO CONTROL FREQUENCY BAND:
2.4GHz
CONTROL TRANSMISSION DISTANCE/RANGE (OPTIMUM CONDITIONS):
FCC Compliance: Up to BOOm (2624.67 ft) I CE Compliance: Up to 400m
(1312.34 ft)
(1312.34 ft)
ROBUST RADIO CONTROL MODULATION:
Yuneec Protocol
VIDEO LINK FREQUENCY BAND:
5.8GHz
FLIGHT SYSTEMS TELEMETRY DATA ON SCREEN DISPLAY (OSD):
Yes
TACTILE AND AUDIBLE FEEDBACK:
Yes
BUILT-IN LIPO BATTERY VOLTAGE I CAPACITY:
3.6VI 5200mAh 18.72Wh
CG03 Gimbal Camera
DIMENSION:
4.5x 1.4×2.9in (115x 135x74mm)
WEIGHT:
6.9oz (195g)
SENSOR:
112.3″ CMOS
EFFECTIVE PIXELS:
12 Megapixels
CAMERA LENS:
0.6in (14mm)IF2.8 (1.4inl35mm) – No Distortion
VIDEO FOV:
115 Degree
ELECTRONIC SHUTTER:
1130 – 118000
WORKING TEMPERATURE:
-1 O’C-40’C
POWER CONSUMPTION:
10W
VIDEO TRANSMISSION RANGE:
Up to 500m (1640ft)
TRANSMISSION SYSTEM:
5. 2Ghz- 5. 8Ghz
VIDEO UHD:
4K at 30FPS, 2.7K at 30FPS , 2.5K at 30FPS
FULL HD:
1080p at 24/25/30/48/50/60/120FPS
HD:
720p at 24/25/30/48/50/60/120FPS
MICROPHONE:
Yes

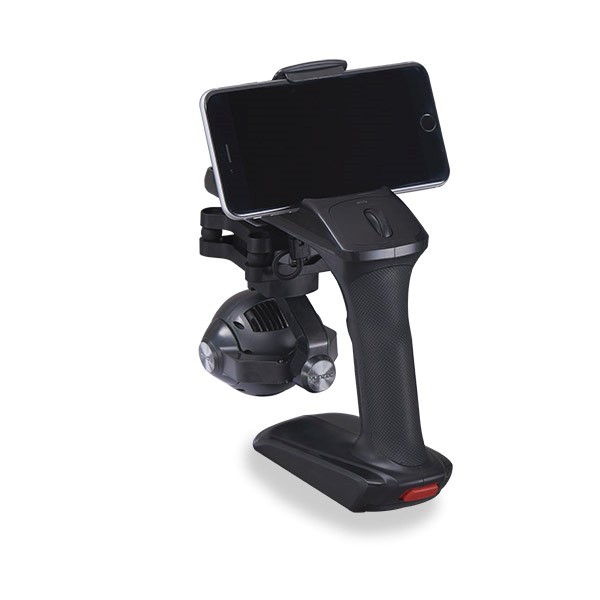

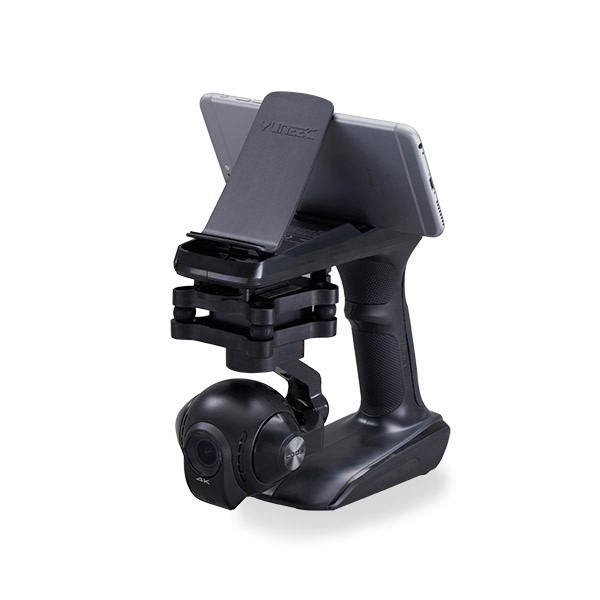

CGO Steadygrip TM
DIMENSIONS:
8.78 in (223mm) x 2.95 in (75mm) x 7.13 in (181mm)
WEIGHT (WITHOUT CAMERA/GIMBAL):
13.9 oz (395g)
COMPATIBLE CAMERA:
CG02 Series I GoPro Hero4 Black with GB203 Gimbal
